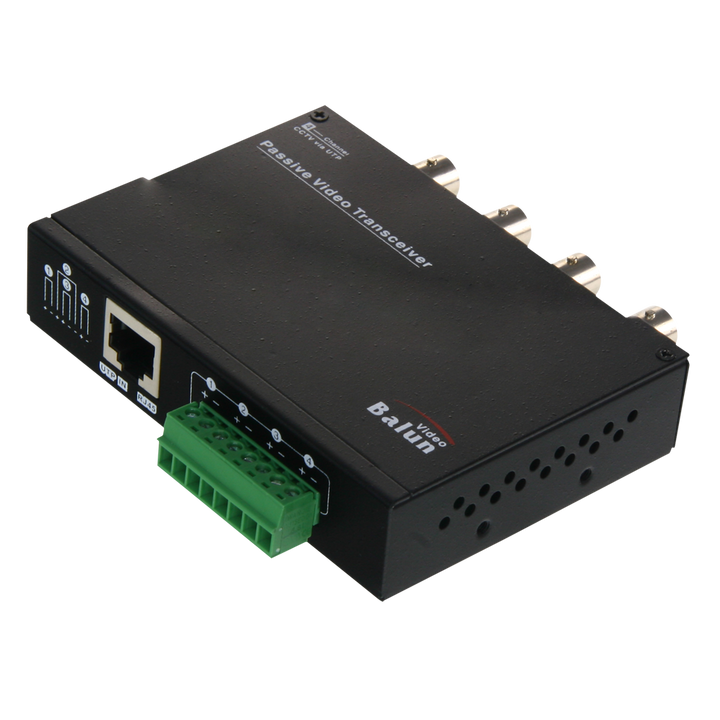

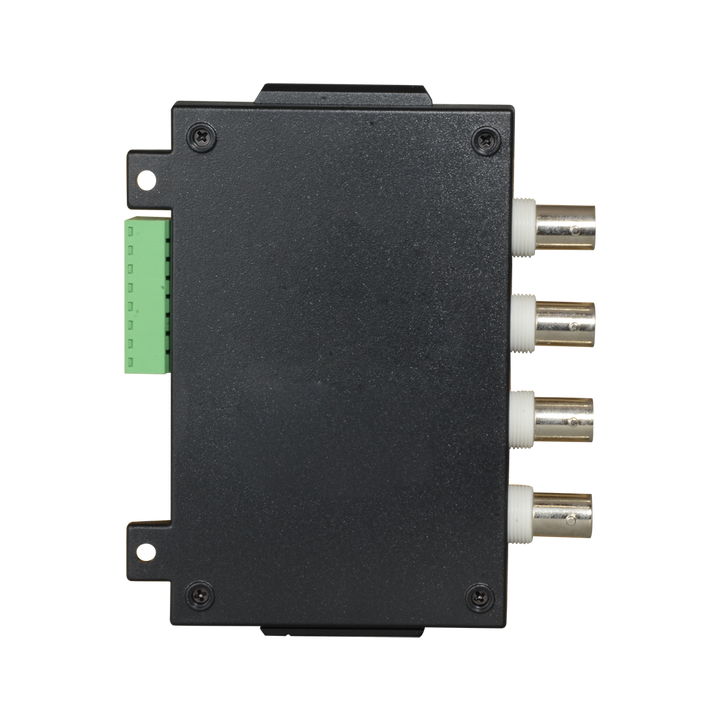

4 channel passive twisted pair video transmitter, optimized for HDTVI / HDCVI / AHD / CVBS video. It can function as a transmitter or receiver, and transmits the signal of four cameras by a single UTP cable.

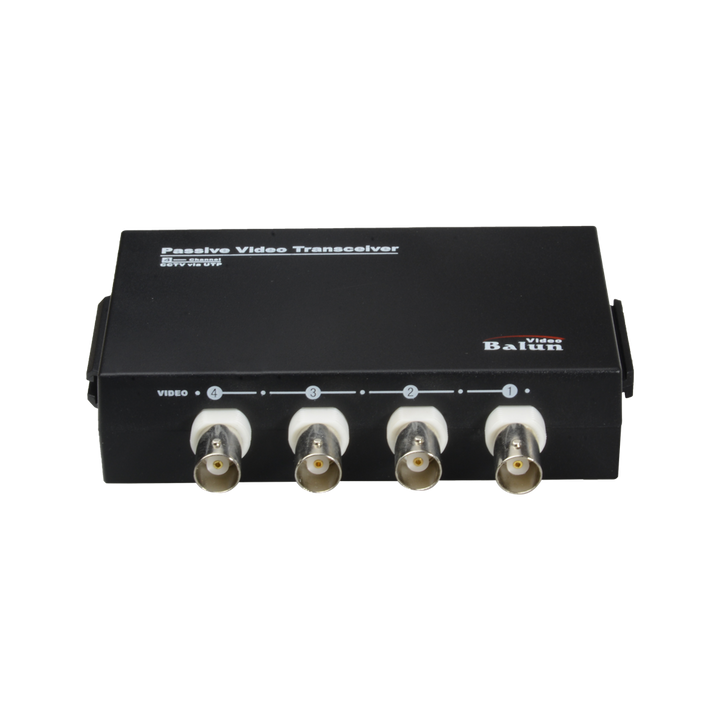

The adapter has 4 BNC connectors, for connections to your VCR. Includes 4 individual BA612P-HAC baluns for connection to cameras.

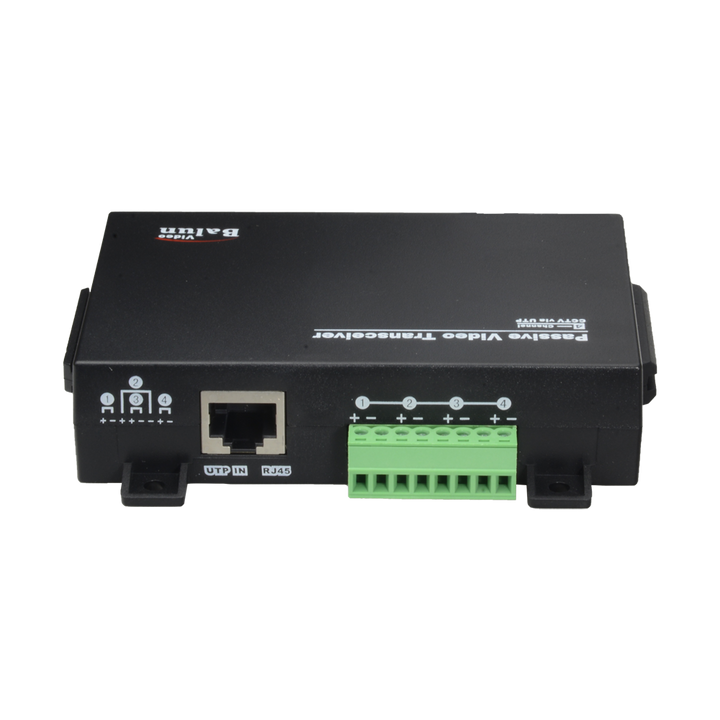

On the other hand, it has a UTP cable connector, either RJ45 or 4-contact +/- terminal blocks, for connecting the cable to wires.

The maximum length between the end that connects to the camera and the end that connects to the video output is :

• HDTVI 720p - 200m
• HDTVI 1080p - 300m
• HDCVI 720p - 400m
• HDCVI 1080p - 200m
• AHD 720p - 300m
• AHD 1080p - 300m
• AHD 4 Mpx - 300 m
• HDTVI 4 Mpx 100 m
• HDCVI 4Mpx 200m
• HDTVI 4K 100m
• HDCVI 4K 200m

19" rack mountable.
