- Sku: BA607PV-HD
- Vendor: INNOWATT
Passive twisted pair transmitter - Optimized for HDTVI, HDCVI and AHD - 1 video channel and power supply - RJ45 (UTP), BNC and Jack connector - Distance: 200 ~ 400 m - 2 units, emitter and receiver
€15,00
Tax included.
Shipping calculated at checkout.
In stock!
BRAND: INNOWATT
- Passive transmitter of video and power supply per twisted pair, 2 units for transmission and reception, specific for analogue high definition (HD).

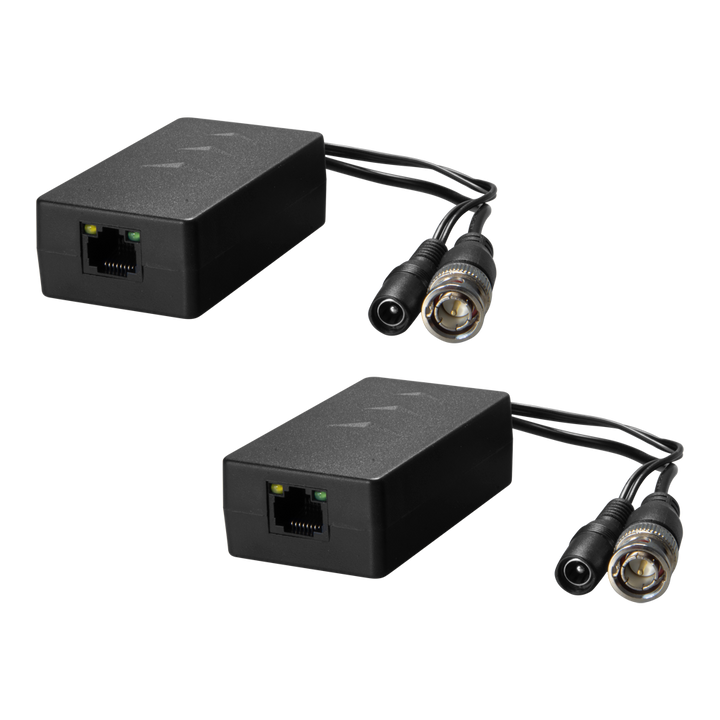

- Optimized for the transmission of video and power signals of 1 high definition analog HDTVI, AHD HDCVI or twisted pair camera. System formed by two baluns, one of which acts as a transmitter (splitter) and the other as a receiver (injector).

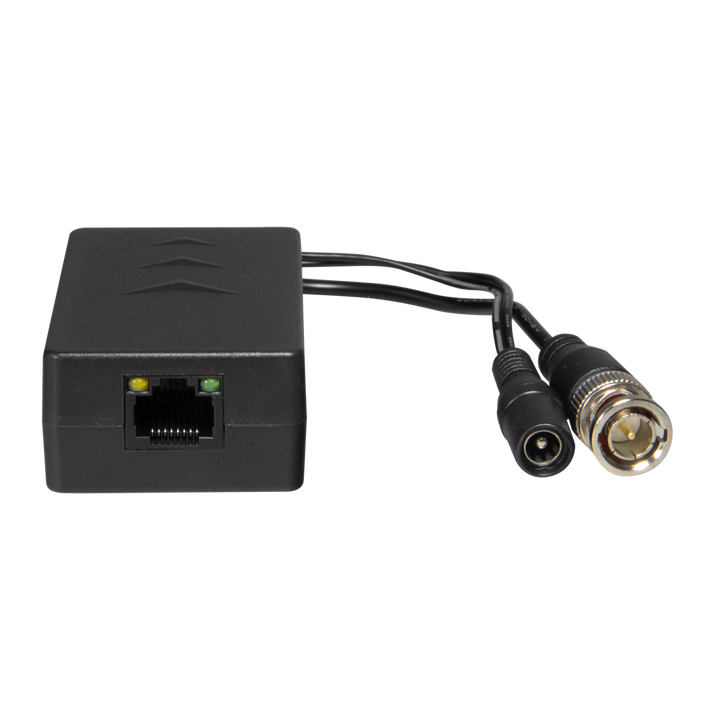

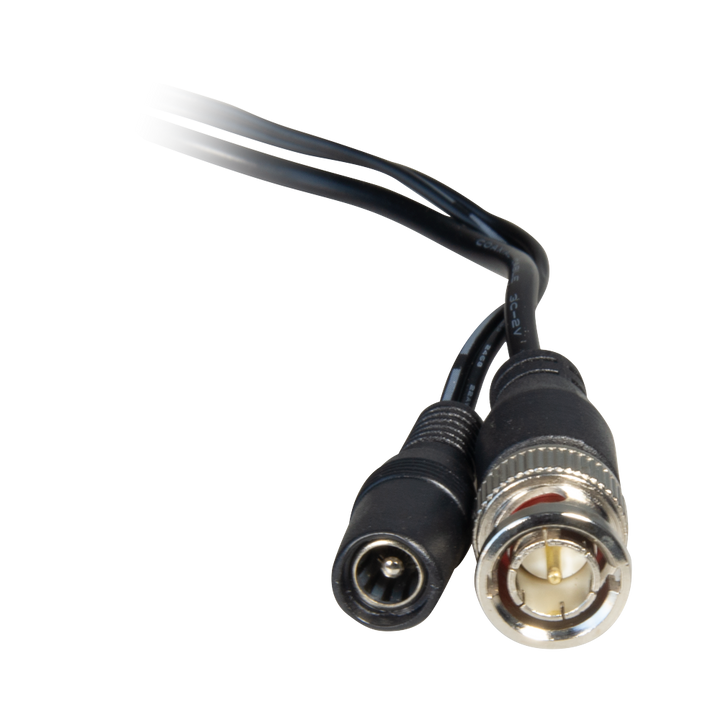

- It has BNC connection (video) and female power (transmitter) or male power (receiver) via jack, as well as RJ45 connector for UTP cable connecting both baluns. Of the 4 wire pairs in the UTP cable it will use 1 pair for video and 3 pairs for power. The data or audio signal is transmitted through the video carrier wave in analog HD technologies.
- The maximum length between the end that connects to the camera and the end that connects to the video output depends on the resolution of the signal and the high definition technology used:
- HDTVI 720p - 200m
- HDTVI 1080p - 200m
- HDCVI 720p - 400m
- HDCVI 1080p - 200m
- AHD 720p - 300m
- AHD 1080p - 200m
- HDTVI 4 Mpx 100 m
- HDCVI 4Mpx 200m
- HDTVI 4K 100m
- HDCVI 4K 200m
- Overvoltage and discharge protection, anti-static design with outstanding noise rejection.
