Passive video and power transmitter for Safire twisted pair, 2 units for transmission and reception, specification for analog high definition (HD).

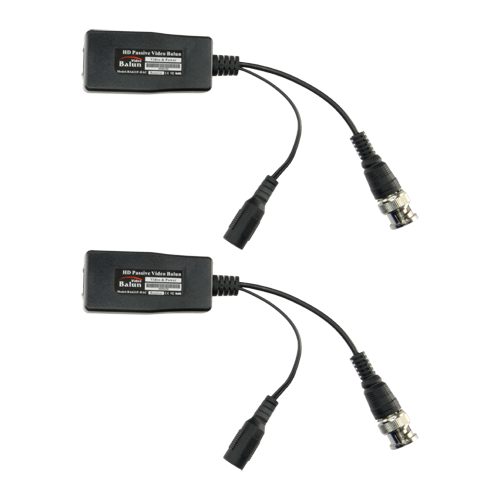

Optimized for video signal transmission and power supply of 1 HDTVI, HDCVI, AHD and CVBS analog high definition camera via twisted pair. System formed by two baluns, one of which acts as a transmitter (splitter) and the other as a receiver (injector).

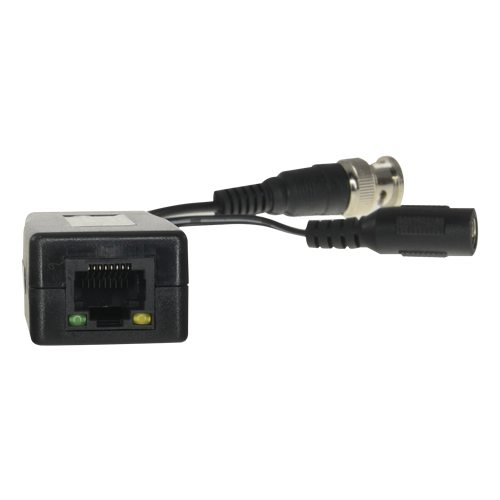

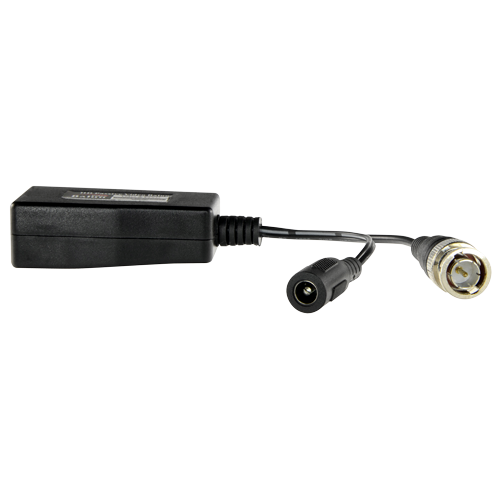

It has BNC connection (video) and female power supply (transmitter) or male power supply (receiver) via jack, as well as RJ45 connector for UTP cable connecting both baluns. Of the 4 wire pairs in the UTP cable it will use 1 pair for video and 3 pairs for power. The data or audio signal is transmitted via the video carrier wave in analog HD, HDTVI or HDCVI technologies.
The maximum length between the end that connects to the camera and the end that connects to the video output depends on the resolution of the signal and the high definition technology used:
- HDTVI 720p - 200m
- HDTVI 1080p - 200m
- HDTVI 4Mpx - 200m
- HDTVI 4K - 200m
- HDCVI 720p - 400m
- HDCVI 1080p - 250m
- HDCVI 4Mpx - 200m
- HDCV 4K - 200m
- AHD 720p - 350m
- AHD 1080p - 200m
- AHD 4 Mpx - 200 m
Overvoltage and discharge protection, anti-static design with outstanding noise rejection.
