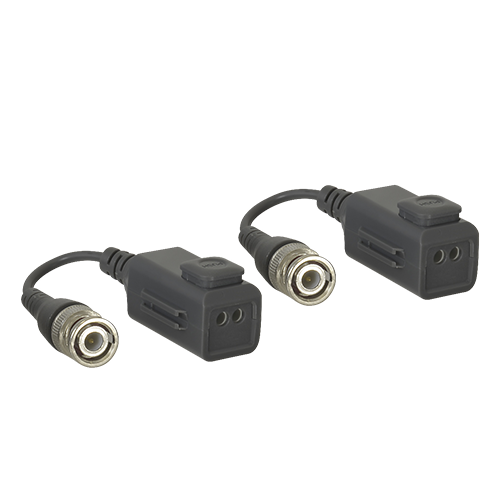

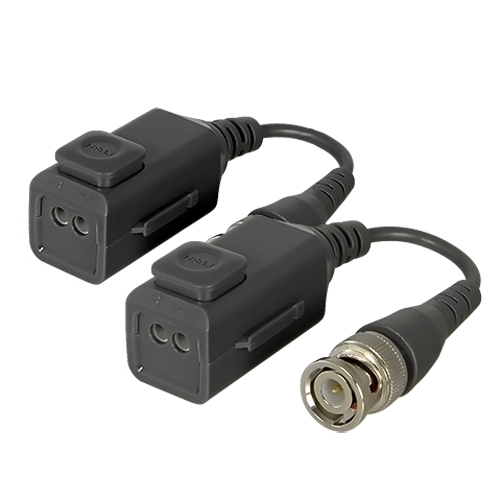

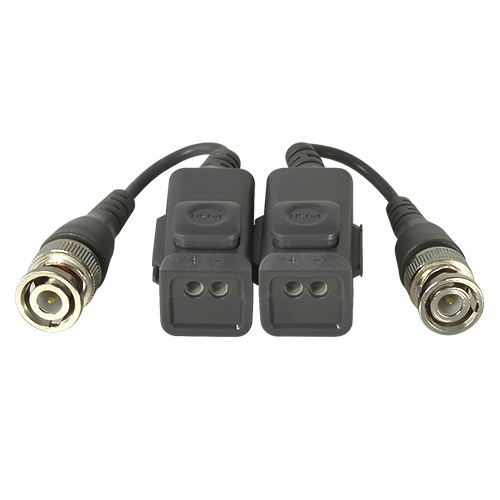

SAFIRE Passive Twisted Pair Transmitter with Splicing Button - Optimized for HDTVI, HDCVI, AHD and CVBS - 1 Video Channel - Passive, 2 Pin Connector - Distance: 150 ~ 500m - 2 Units

SAFIRE passive video transmitter for twisted pair, 2 units for transmission and reception, specific for analogue high definition (HD).

Optimized for video signal transmission of 1 analog HDTVI, HDCVI, AHD or CVBS high definition camera via twisted pair. It has a male BNC connector and cable entry terminal with Splicing Button, two pole connector.

The maximum length between the end that connects to the camera and the end that connects to the video output depends on the resolution of the signal and the high definition technology used:

• HDTVI 720p - 200m
• HDTVI 1080p - 250m
• HDTVI 3Mp - 250m
• HDTVI 5Mp - 150m
• HDTVI 8Mp - 150m
• HDCVI 720p - 300m
• HDCVI 1080p - 250m
• HDCVI 4Mp - 200m
• HDCVI 8Mp - 150m
• AHD 720p - 200m
• AHD 1080p - 300m
• AHD 4Mp - 200m
• AHD 5Mp - 150m
• CVBS - 500m
