Infrared Barrier Detector - Wireless | Internal Antenna - Max. Distance detection range 60 / 180 m - Wireless distance 80 m - Tamper | Relay output - DC12V power supply

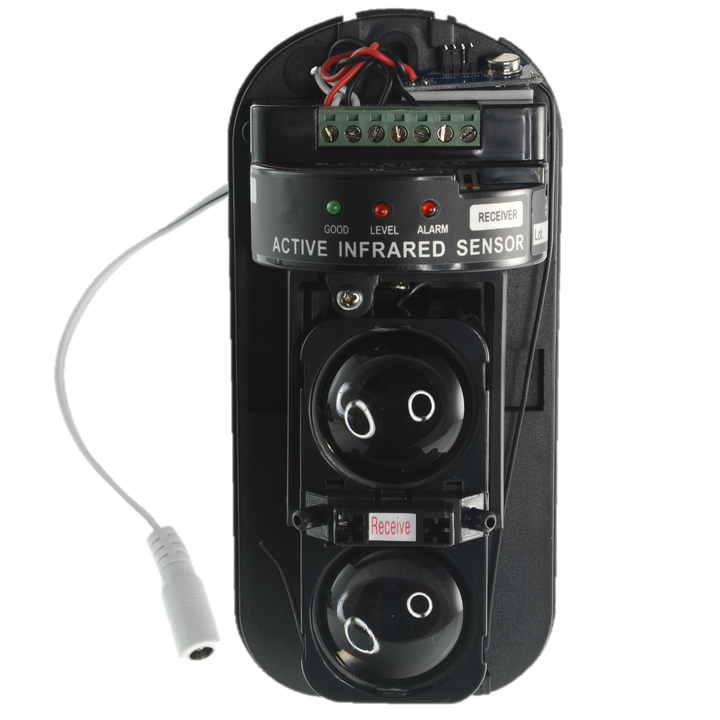

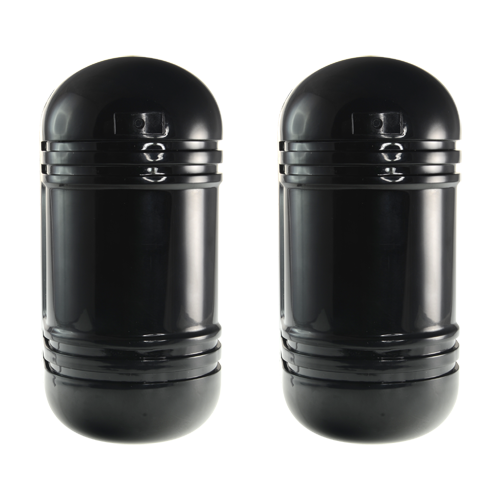

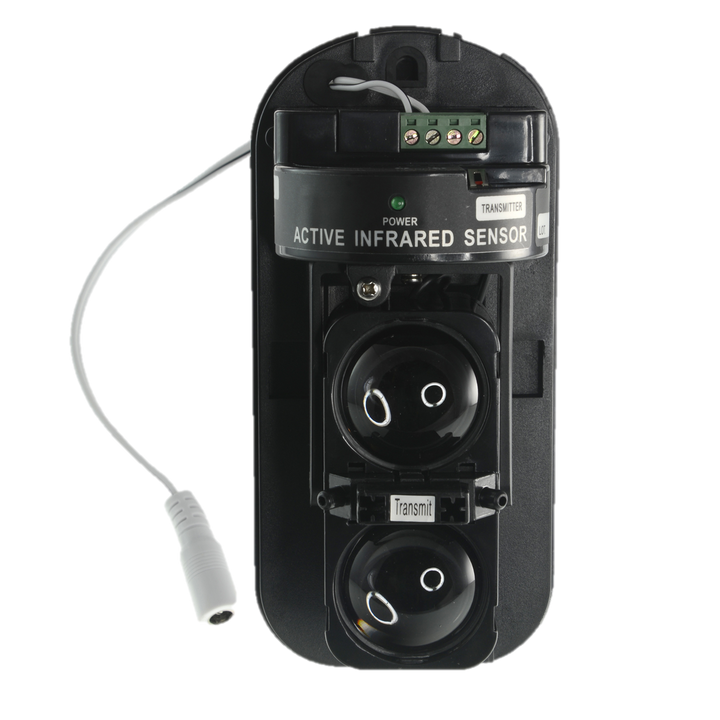

Wireless, dual-beam infrared detector, barrier type transmitter / receiver. It allows detecting any intrusions that occur between the barrier, sending an alert to the panel which will trigger the alarm.

It is the ideal solution for securing perimeter access, entrance fences, windows, etc. If the alarm system is activated and any object or person crosses the demarcation line between the two detectors, the alarm immediately goes off.

• Maximum distance outside infrared 60 m / inside 180 m
• max. width beam propagation distance in the receiver 1.5 m
• Regulation of response time and infrared beam level
• Level and alarm LED indicators
• Wireless 433 MHz with the panel, with a maximum range of 80 m
• Anti-opening tamper at housing (PC) in transmitter and receiver
• Additional tamper output in transmitter and receiver
• relay output in the receiver

Easy wall or post installation, both indoors and outdoors. Positioning of Fresnel lenses horizontally and vertically with optical device for fine adjustment. DC 12V power supplies.
